• Cummins 6BTA5.9  (177 HP) Engine
• Sundstrand 90 Series Hydraulic Drive Pumps
• Poclain Hydraulic Drive Motors
• Sundstrand 45 Series Load Sensing Hydrauclic Accessory Drive Pump
• Pilot Hydraulic System
• Variable Power and Speed available to either track at all times
• Counter rotation available
• Steering more positive because of finite power to each track

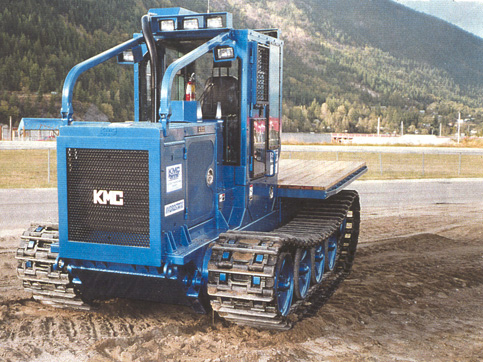

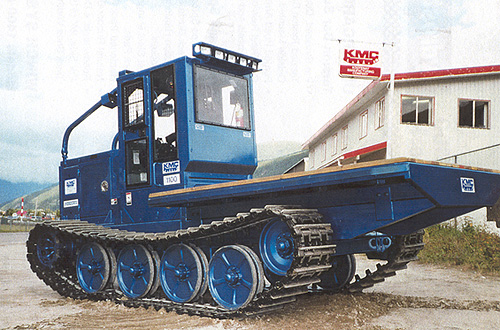

The Only True Hydrostatic Drive Track Skidder In the Industry!

• Balanced Weight Distribution
• Torsion Bar Sprung Suspension
• "Live" Steel Track

Giving You The New Alternative Skidding Machine With:

• More Manuverability
• More Speed
• Higher Production
• Extended Working Season
• Low Ground Pressure
• Less Soil Compaction

Let Us Put a KMC Track Skidder To Work For You and Prove Its Ability.

• Cummins Model 6 BTA B5.9 (177 HP) Diesel Engine

• Sauer Sundstrand 90 Series Axial Piston Variable Displacment Pumps c/w Hydraulic Controllers (75 cc Displacment)

• Poclain High Torque/Low Speed (HTLS) Motors 91.9 cu. in. Displacement - Two Speed c/w Integral Fail Safe Brake

• Durst Two Pad Pump Drive c/w Thru-Shaft PTO Drive Controls

• Rexroth Pilot Device Model 2TH6R Foot Pedal Control
  OR
• Rexroth Pilot Device Model 4TH^ Arm Rest Joystick Control

• Sauer Sundstrand 45 Series Axial Piston Variable Displacement (Loading Sensing) Pump. - 57 cc/3.45 cu. in. Displacment.
• VOAC Model L90LS Proportional Load Sensing Directional Control Valve c/w Hydraulic and Electric Actuators.

• Pre-Stressed, Double Heat Treated Torsion Bars.
• Outside Mounted Anchors.
• Forged Road Arms.
• Cast Steel Reinforced Roadwheels and Idler Wheels.

• Spoke Type Sprocket Carrier c/w Track Guide Slots.
• Induction Hardened, In-Pitch Sprockets.
• Cast Steel Manganese Alloy Track Pads.
• Hardened Track Pin and Nuts
• Natural Rubber Bushings.
• Roadwheels: 4 Dual Roadwheels Per Side, 24" (610 mm) Diameter.
• Track Shoe Width: 22" (559 mm)

• Carco Model 30B - Power Shift
• Maximum Line Pull - 30,000 lbs.
• Maximum Line Speed 397 fpm.
• Maximum Line Capacity:
  9/16" - 284' (87 m)
  5/8" - 233' (71 m)
  3/4" - 164' (50 m)

• Clark Winch WD-413
  Line Pull - 33,000 lb.
  Line Speed - 319 fpm.

• 12 volt
• Alternator - 60 amp.
• Starter - 12 volt
• Battery - 1000 C.C.A.

• Maximum Payload: -28,000 lbs. (12,700 kg.)
• Maximum Weight on Vehicle: 16,800 lbs. (7,620 kg.)
• Ground Pressure:
  - 6.03 PSI (41.58 kPa) @ 0 Penetration
  - 3.95 PSI (27.24 kPa) @ 6" Penetration
• Maximum Travel Speed: 0 to 15 mph (24 KPH)
• Fuel Tank Capacity 50 Gallons

• Gauges / Indicators: Includes Tachometer, Ampmeter, Hour Meter, Volt Meter, Fuel, Water Temperature, Engine Oil Pressure, Hydraulic Oil Temperature, Air Filter Restriction Indicator.
• Mufflers: Forest Service Approved, with Spark Arrestors,
• Oil Coolers: Hydraulic Oil.
• Light Kit: Optional Headlights, Rear Lights, Dash-Mounted Switch.
• Tool Box and Tools: Track Jacks, Drift Pin, Road Arm Lifter, Manuals.
• Deluxe Seat: Adjustable with Seat Belt
• Grill: Reinforced, Hinged.
• Anti-Freeze Protection: To -40°
• Air Cleaner: Dry Type with Pre-Cleaner

• Model 1400 (Choker Arch): 23,860 lbs. (10,823 kg.)
• Model 1500 (Single Arch Grapple): 26,031 lbs (11,808 kg.)
• Model 1500P (Dual Arch Grapple): 26,280 lbs. (11,9231 kg.)
• Model 1600 (Swing Grapple): 27,350 lbs. (12,432 kg.)
