Timber Harvesting

Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine Options

Standard - Cummins 6BTA5.9 174HP

Drive options

Mechanical and Hydrostatic Drive

Card image

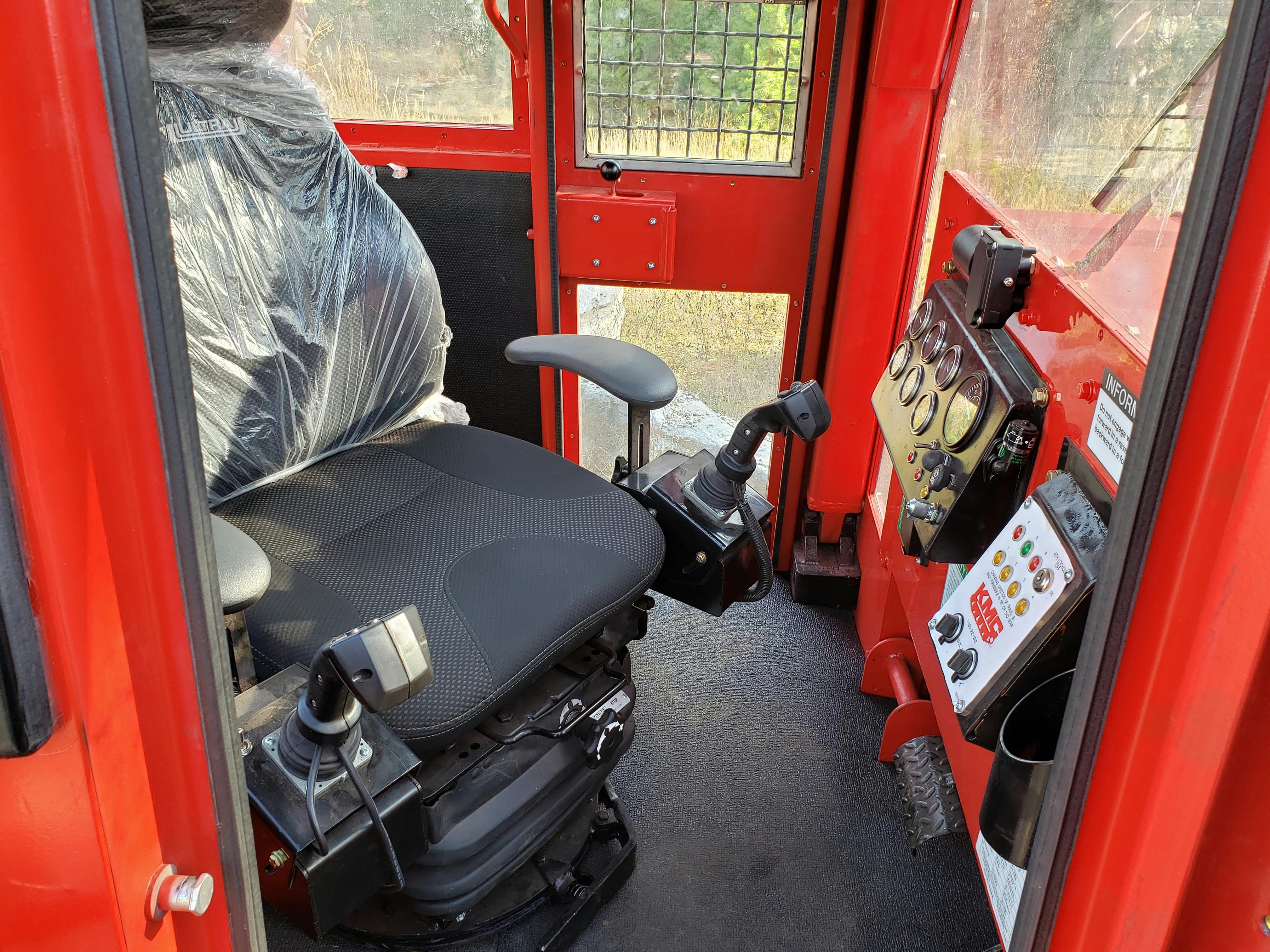

Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Card image

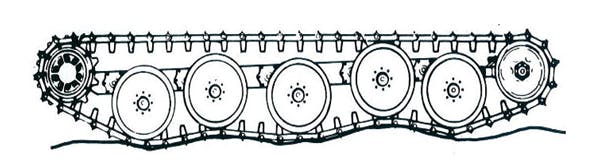

Torsion Bars

Torsion bars attached individually to road arms provide the spring suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Winch Options (not available for Swing Grapple)

40,000 lb Line Pull

-Clark

-Hyster

Arch Options
Card image

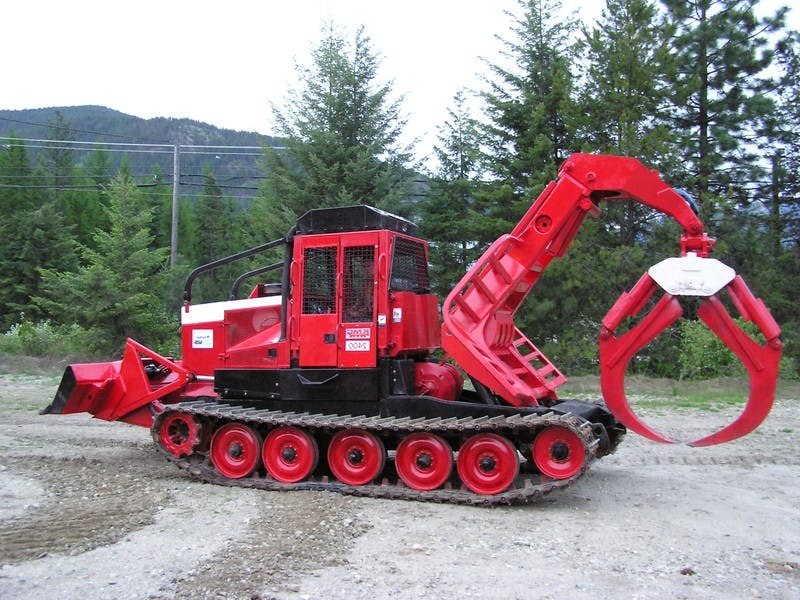

Single arch: This high performance logging grapple quickly picks up the load for a rapid haul, and keeps the load close for maximum stability.

Card image

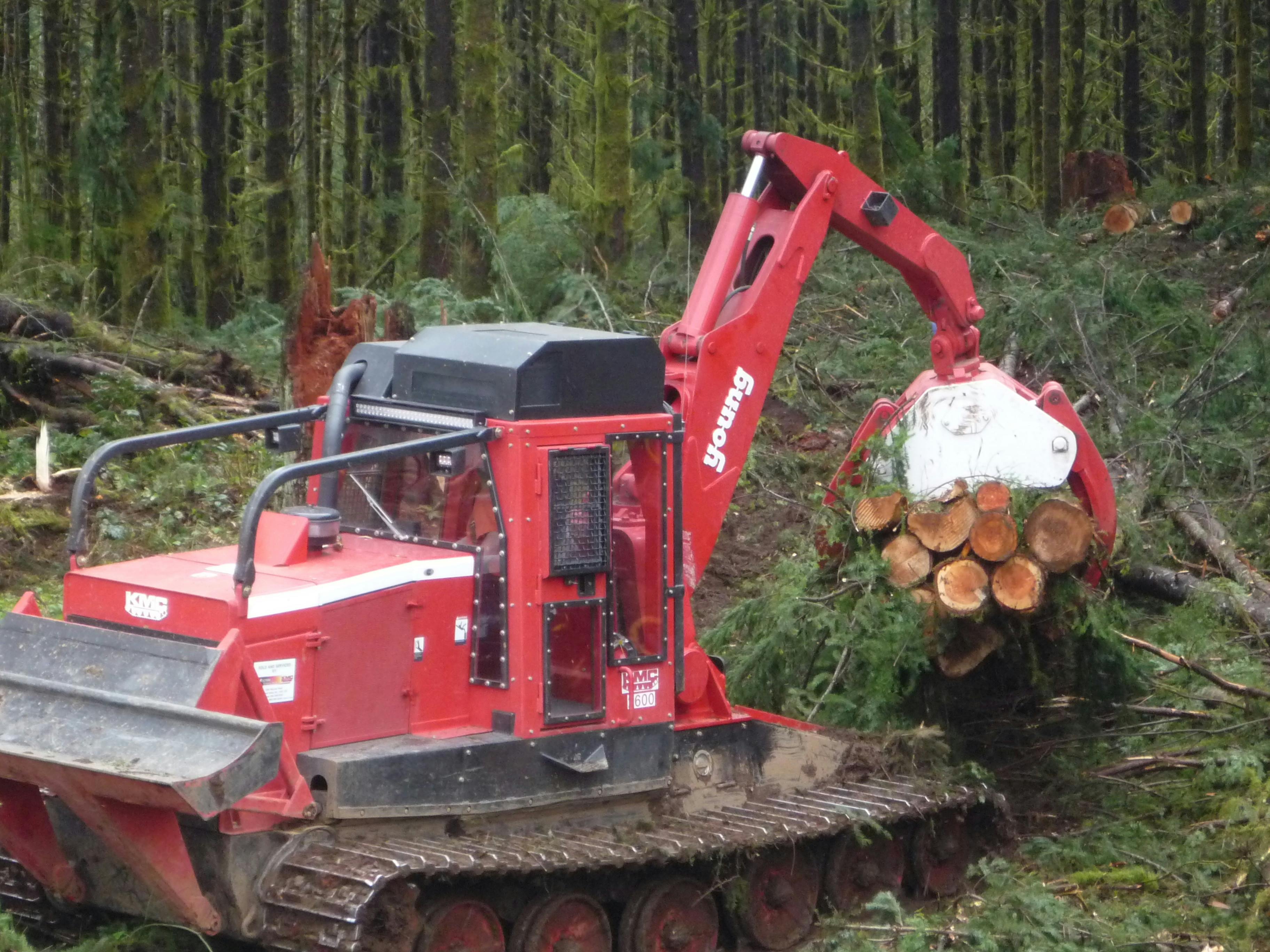

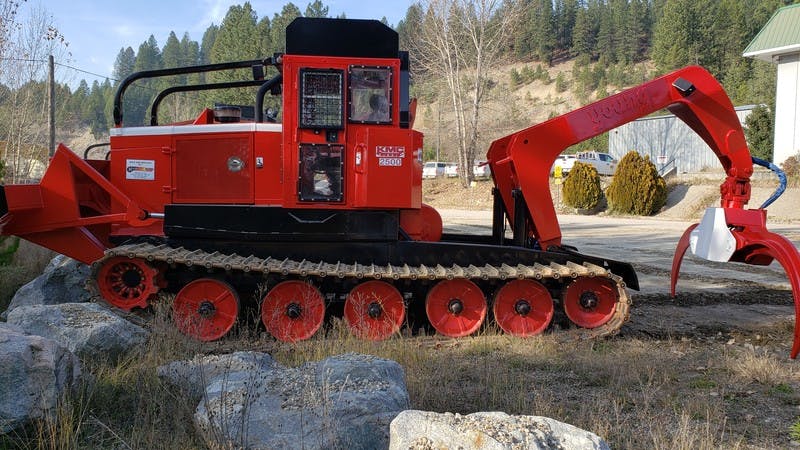

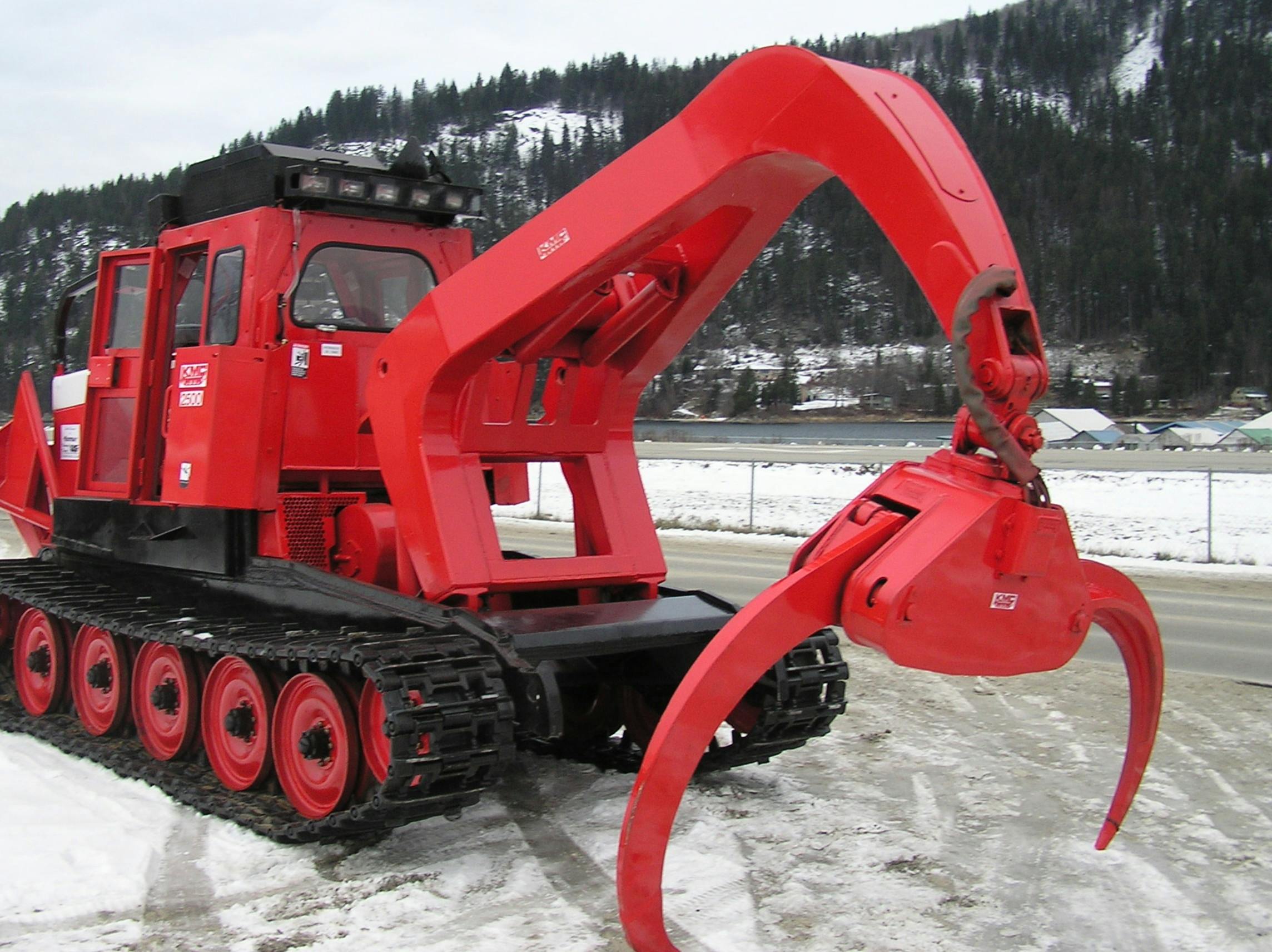

Swing Grapple: 12’ of reach, 140° swivel.  This machine adds added versatility by allowing the operator to move the boom sideways to grab out of reach timber, maneuver it around obstacles, or to shift the weight of the machine when on soft/wet ground and steep slopes.

Card image

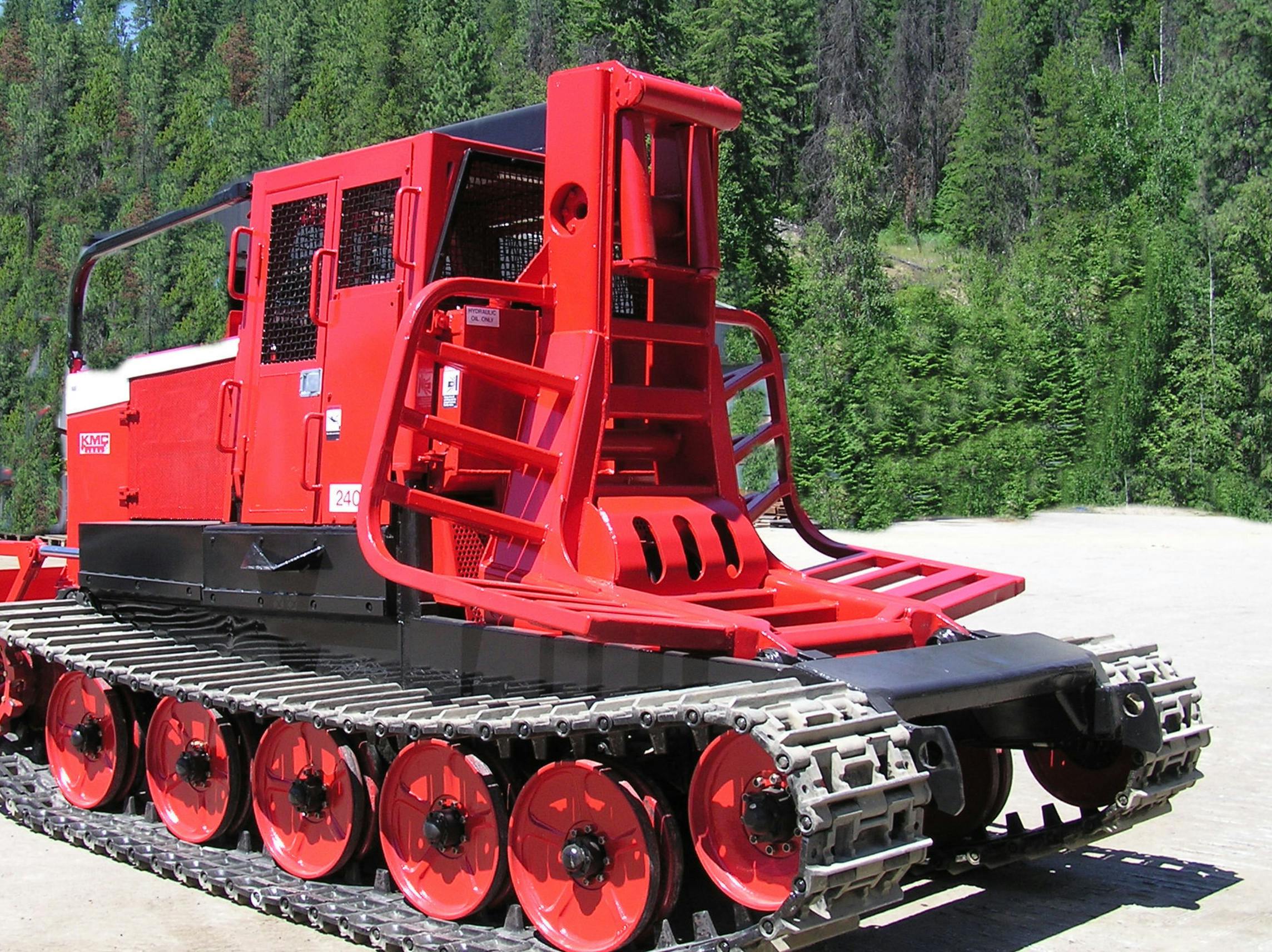

Choker arch: The hydraulically operated arch with integrated, four roller fairlead is a versatile logging tool.

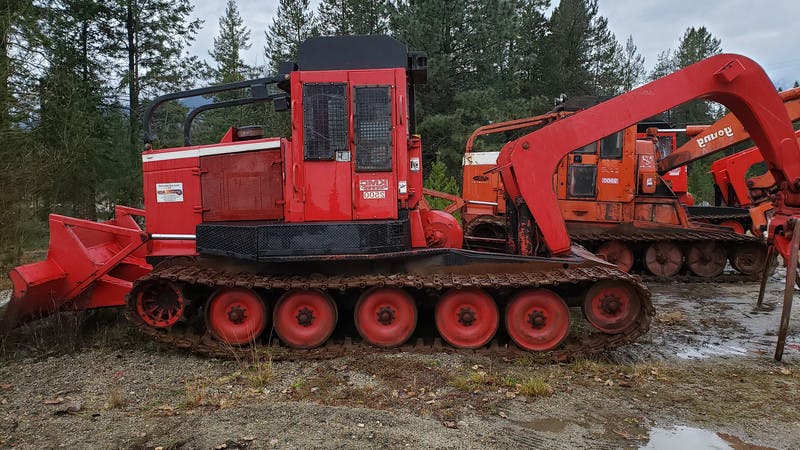

A Remanufactured KMC or New Kootrac High Speed Steel Tracked Log Skidder, with its uniquely designed balanced weight distribution, torsion bar suspension and “live” steel track, combines the speed of a rubber-tired skidder and the payload of a crawler tractor.  The KMC-Kootrac machine, with its power to weight distribution, low center of gravity and superior traction, combined with a light flotation effect on the ground surface, are our competive advantages offering significant benefits to the contractor to extend the production season whether on steep slopes, wet and boggy ground and/or environmentally sensitive soils and everything in between.

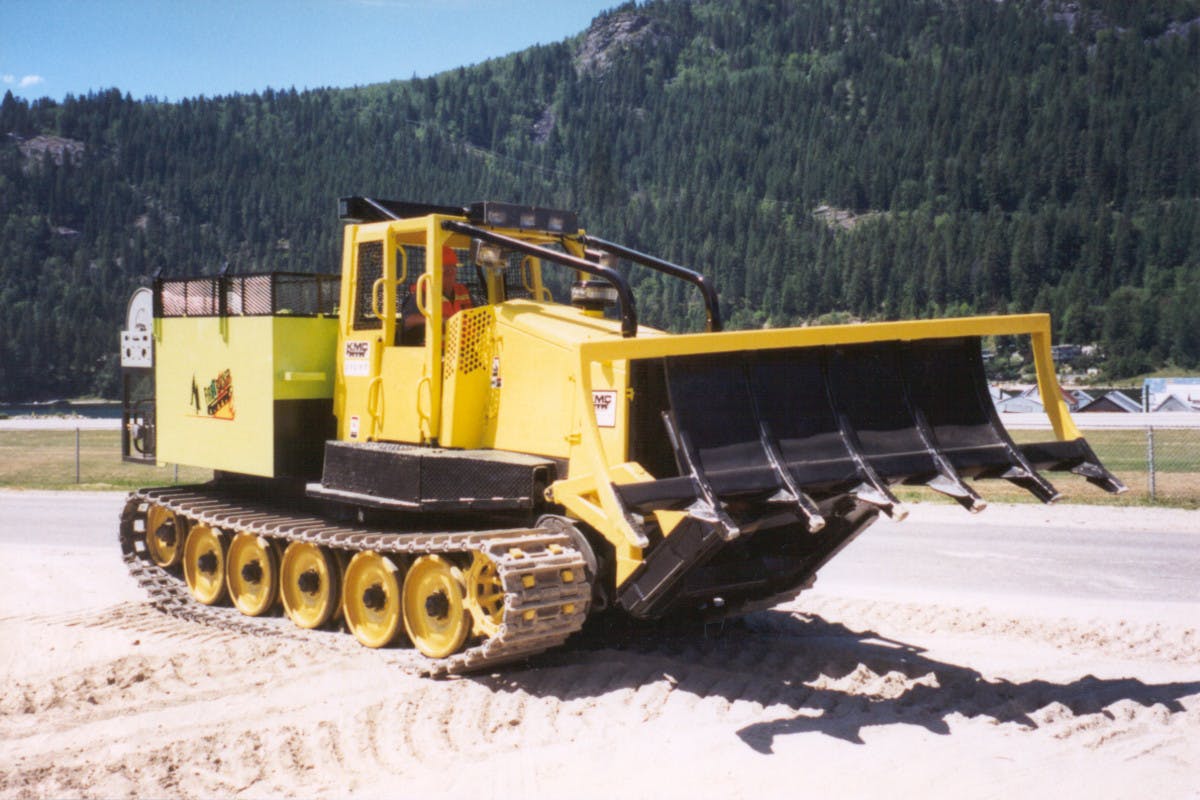

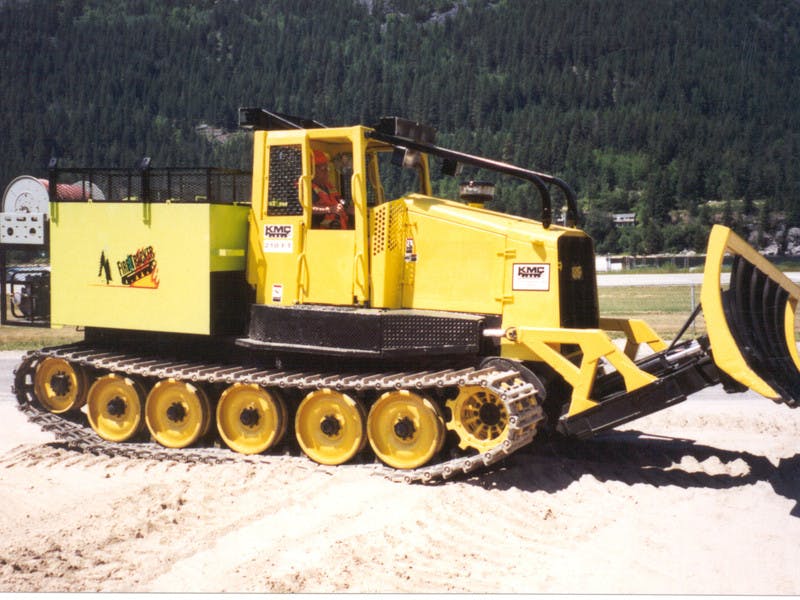

Fire Suppression

Card image
Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to roadarms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Card image
Tank Size

1100-1500 gallon tanks

Can be utilized as an optional seasonal attachment, allowing KMC Arch Grapple Skidders to be easily converted for wildfire suppression work.

Card image

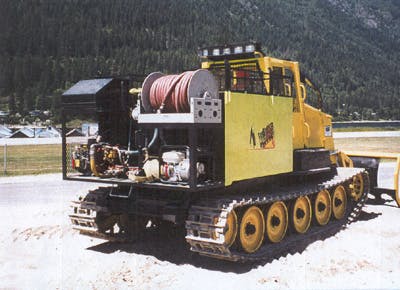

Pump/Hoses/Electric Reels

Pumps/Hoses: 4- 1 ½ “lay flat hose outlets.

Electric hose reel (100-240’x 1” hose).

Foam application system.

5 min refills.

Discharge: 100 psi@ 90 gpm or 250 psi@ 70 gpm.

Card image
Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Drive Options

Mechanical Drive or Hydrostatic

The machine is designed to assist in all types of Forest Fire applications from initial attack to mop-up. This unit goes where other conventional machinery cannot and allows the operator to extinguish spot fires while traveling, makes for a very effective Fire Fighting Unit. Complete with a foam application system to give the machine far more impact when working in the field.

Vegetation & Agriculture

Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to road arms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

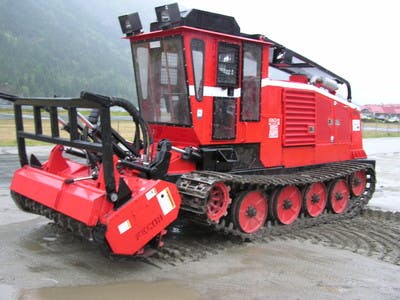

Mulcher Head

90cc fixed Rexroth bent axis motors

90 gal/min @3850 psi

Max Rpm 2400

Mulch to 3” below grade

6’4” cut on 8’2” frame

Cut capacity: 12” diameter tree

Card image

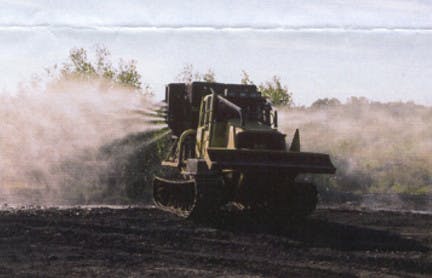

Sprayer attachment

Compatible with a wide variety of chemicals

Capable of spraying swaths up to 100’ wide!

Variable spray patterns

Card image
Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Drive Options

Mechanical Drive or Hydrostatic

The KMC Mulcher and Brushcutter Vehicles are available as rear engine or front engine versions, on either the 1000 Series or larger 2000 Series chassis, fully hydrostatic and with available power between 200 and 450 HP.  Virtually any forestry mulcher or brushcutter make or model can be adapted to the carrier.  This is the perfect High Speed carrier for utility and forestry vegetation management work.

Oil & Gas and Mining

Generator

The Cummins Onan Hydraulic Series of generators are designed as a fully-integrated power system that includes the hydraulic pump, motor generator, filtration system, oil cooler and reservoir in one complete, compact, and lightweight package.  Cummins Onan Hydraulic generators start under full load and run at the rated output, giving you all the power and performance you’re paying for.

Compressor

The air compressor comes with the most advanced control system available, with easy to use digital controls that extend compressor life by automatically protecting it in extreme environments.  VMAC’s hydraulic powered rotary screw compressor produces 25 to 60 CFM and is designed to run continuously or intermittently.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to road arms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

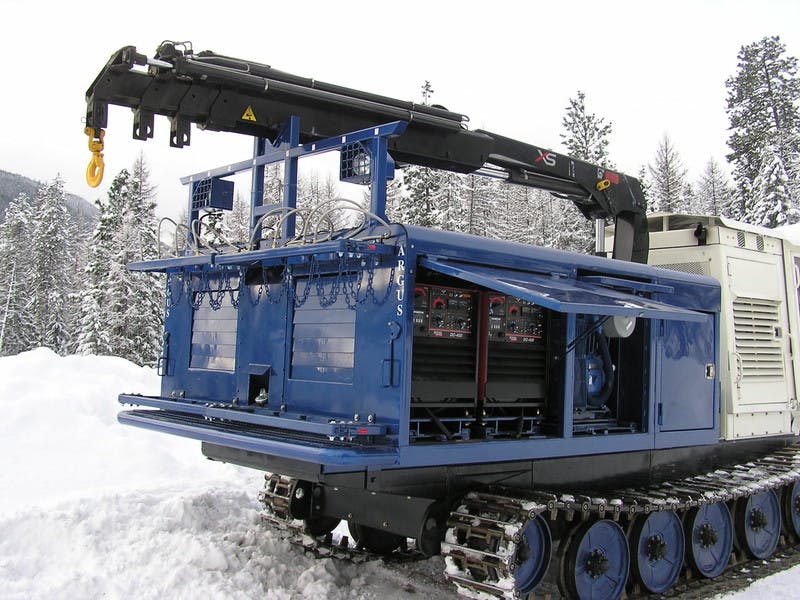

Crane Rig

Hiab XS 111 B-3CLX

  • Max. lifting capacity (ft-lbs)-68,590
  • Outreach, hydraulic extensions- 33’
  • Height in folded position 85”
Lincoln DC 400 Welding Machine x 4

Rugged construction, simple controls and a 100% duty cycle output rating make these machines a sound investment for heavy duty shop applications. Add the outstanding traditional SCR rectifier arc action delivering high quality, attractive welds and your operators will agree – it’s hard to go wrong with an Idealarc® DC400.

The KMC Tracked Vehicles are the perfect all-terrain carrier for mining exploration drilling equipment or other rock drill applications in addition to industrial equipment transportation.

Utilities

Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to roadarms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Card image

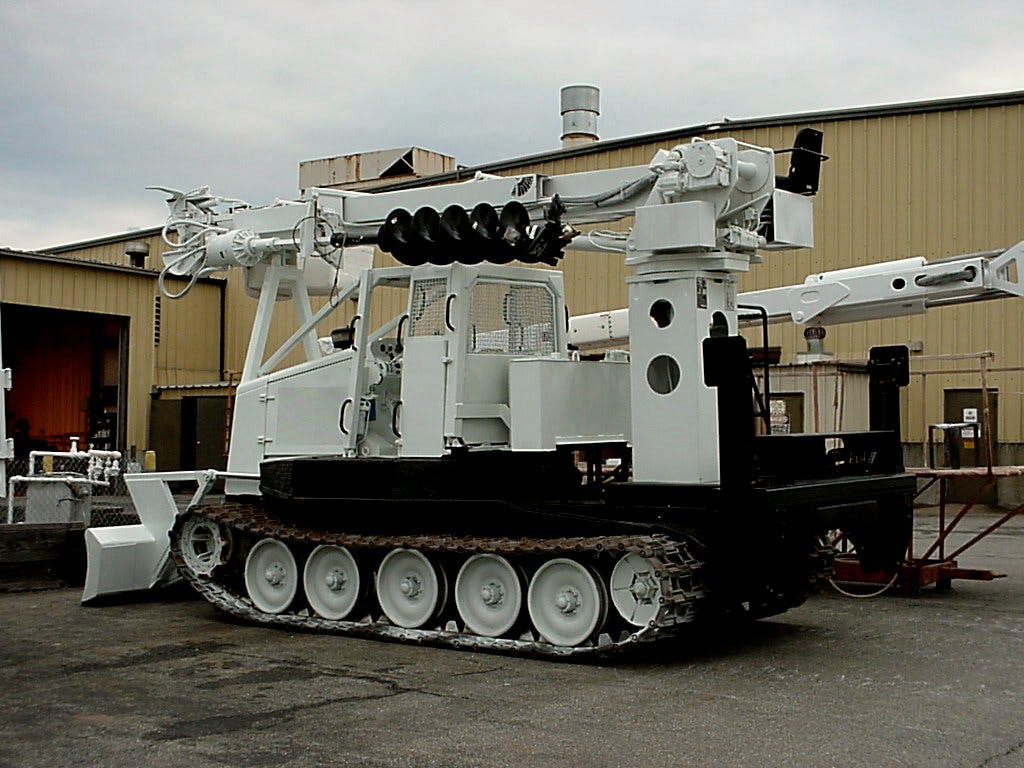

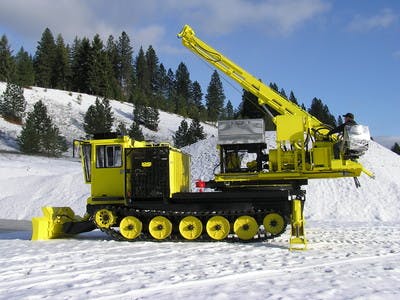

Digger Derricks

A versatile crane vehicle with an auger attached to the boom.

Able to dig deep holes and place phone poles in the hardest to reach areas.

Card image
Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Drive Options

Mechanical Drive or Hydrostatic

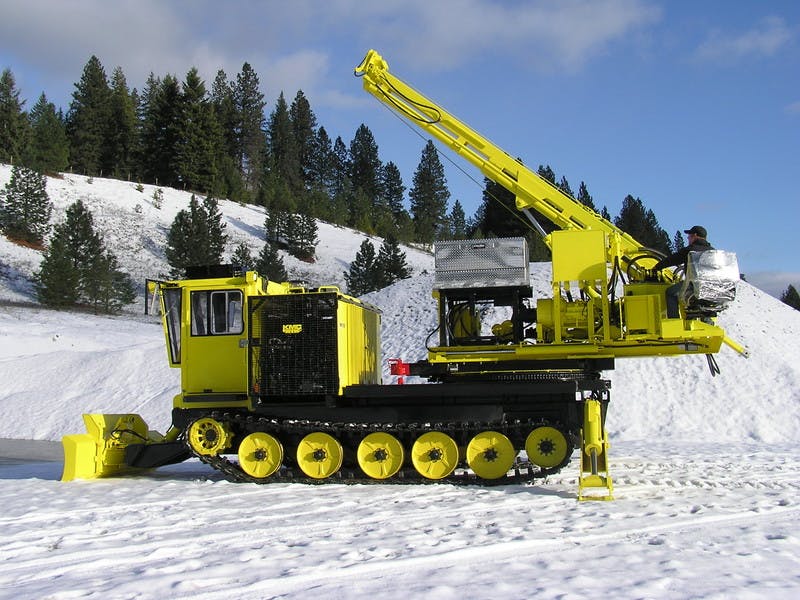

Drill Rig

High torque

Variable speed

240° rotation

Mast working heights ` from 11’10”-39’10”

The KMC Tracked Vehicle is the perfect all terrain carrier for a variety of specialized off-road utility equipment such as Digger-Derricks, Man Lifts, Spool Carriers and Flat Deck equipment transporters.  Equipped with a 6-way hydraulic dozer, it can plow snow or create its own access for emergency storm recovery work on severe terrain.

Custom Build

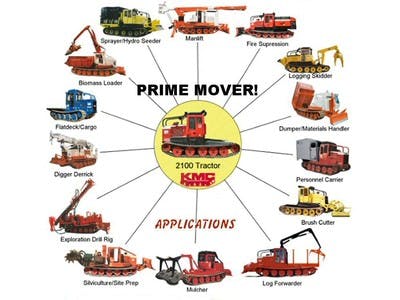

The KMC-Kootrac specialized carrier is known as the "Prime Mover" and can be adapted to meet any requirements in a variety of industry specific applications. The key features of balanced weight distribution, torsion bar suspension, "live" steel track and a light environmental footprint makes this machine the solution for your off-road equipment needs with the ability to operate in all weather and terrain. We will custom build to your specifications.

Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine Options

Standard - Cummins 6BTA5.9 174HP

Drive options

Mechanical and Hydrostatic Drive

Card image
Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Card image
Torsion Bars

Torsion bars attached individually to road arms provide the spring suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Winch Options (not available for Swing Grapple)

40,000 lb Line Pull

-Clark

-Hyster

Arch Options
Card image

Single arch: This high performance logging grapple quickly picks up the load for a rapid haul, and keeps the load close for maximum stability.

Card image

Swing Grapple: 12’ of reach, 140° swivel.  This machine adds added versatility by allowing the operator to move the boom sideways to grab out of reach timber, maneuver it around obstacles, or to shift the weight of the machine when on soft/wet ground and steep slopes.

Card image

Choker arch: The hydraulically operated arch with integrated, four roller fairlead is a versatile logging tool.

Timber Harvesting

A Remanufactured KMC or New Kootrac High Speed Steel Tracked Log Skidder, with its uniquely designed balanced weight distribution, torsion bar suspension and “live” steel track, combines the speed of a rubber-tired skidder and the payload of a crawler tractor.  The KMC-Kootrac machine, with its power to weight distribution, low center of gravity and superior traction, combined with a light flotation effect on the ground surface, are our competive advantages offering significant benefits to the contractor to extend the production season whether on steep slopes, wet and boggy ground and/or environmentally sensitive soils and everything in between.

Card image
Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to roadarms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Card image
Tank Size

1100-1500 gallon tanks

Can be utilized as an optional seasonal attachment, allowing KMC Arch Grapple Skidders to be easily converted for wildfire suppression work.

Card image
Pump/Hoses/Electric Reels

Pumps/Hoses: 4- 1 ½ “lay flat hose outlets.

Electric hose reel (100-240’x 1” hose).

Foam application system.

5 min refills.

Discharge: 100 psi@ 90 gpm or 250 psi@ 70 gpm.

Card image
Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Drive Options

Mechanical Drive or Hydrostatic

Fire Suppression

The machine is designed to assist in all types of Forest Fire applications from initial attack to mop-up. This unit goes where other conventional machinery cannot and allows the operator to extinguish spot fires while traveling, makes for a very effective Fire Fighting Unit. Complete with a foam application system to give the machine far more impact when working in the field.

Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to road arms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Mulcher Head

90cc fixed Rexroth bent axis motors

90 gal/min @3850 psi

Max Rpm 2400

Mulch to 3” below grade

6’4” cut on 8’2” frame

Cut capacity: 12” diameter tree

Card image
Sprayer attachment

Compatible with a wide variety of chemicals

Capable of spraying swaths up to 100’ wide!

Variable spray patterns

Card image
Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Drive Options

Mechanical Drive or Hydrostatic

Vegetation & Agriculture

The KMC Mulcher and Brushcutter Vehicles are available as rear engine or front engine versions, on either the 1000 Series or larger 2000 Series chassis, fully hydrostatic and with available power between 200 and 450 HP.  Virtually any forestry mulcher or brushcutter make or model can be adapted to the carrier.  This is the perfect High Speed carrier for utility and forestry vegetation management work.

Generator

The Cummins Onan Hydraulic Series of generators are designed as a fully-integrated power system that includes the hydraulic pump, motor generator, filtration system, oil cooler and reservoir in one complete, compact, and lightweight package.  Cummins Onan Hydraulic generators start under full load and run at the rated output, giving you all the power and performance you’re paying for.

Compressor

The air compressor comes with the most advanced control system available, with easy to use digital controls that extend compressor life by automatically protecting it in extreme environments.  VMAC’s hydraulic powered rotary screw compressor produces 25 to 60 CFM and is designed to run continuously or intermittently.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to road arms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Crane Rig

Hiab XS 111 B-3CLX

  • Max. lifting capacity (ft-lbs)-68,590
  • Outreach, hydraulic extensions- 33’
  • Height in folded position 85”
Lincoln DC 400 Welding Machine x 4

Rugged construction, simple controls and a 100% duty cycle output rating make these machines a sound investment for heavy duty shop applications. Add the outstanding traditional SCR rectifier arc action delivering high quality, attractive welds and your operators will agree – it’s hard to go wrong with an Idealarc® DC400.

Oil & Gas and Mining

The KMC Tracked Vehicles are the perfect all-terrain carrier for mining exploration drilling equipment or other rock drill applications in addition to industrial equipment transportation.

Blade Options

Standard Decking Blade: Built tough to move even the biggest logs where you need them (with log deflectors).

4 way tilt: The side rotation on the 4-way blade is ideal for pushing dirt, rocks, and snow to the side allowing the machine to easily form a path.

6 way tilt: The 6 way tilt allows for angling the blade which can be especially helpful when grading slopes.

Engine

Standard - Cummins 6BTA5.9 174HP

Card image
Torsion Bar Suspension

Torsion bars attached individually to roadarms provide the sprung suspension. Each set of road wheels can move up and down independently, there-by allowing the tracks to conform to uneven surfaces resulting in low ground pressure, increased traction and a smooth comfortable ride

Card image
Digger Derricks

A versatile crane vehicle with an auger attached to the boom.

Able to dig deep holes and place phone poles in the hardest to reach areas.

Card image
Cab Features

-Fly by Wire Joystick Controls (No Fluids In The Cab)

-Led Lighting Throughout - Exterior Flood Lights, Transmission Display, Fuse Panel, Wiring Harness for Valve Body to name a few.

-Swivel Seat

-Fully Enclosed

-Sound Suppressed

Drive Options

Mechanical Drive or Hydrostatic

Drill Rig

High torque

Variable speed

240° rotation

Mast working heights ` from 11’10”-39’10”

Utilities

The KMC Tracked Vehicle is the perfect all terrain carrier for a variety of specialized off-road utility equipment such as Digger-Derricks, Man Lifts, Spool Carriers and Flat Deck equipment transporters.  Equipped with a 6-way hydraulic dozer, it can plow snow or create its own access for emergency storm recovery work on severe terrain.

Custom Build

The KMC-Kootrac specialized carrier is known as the "Prime Mover" and can be adapted to meet any requirements in a variety of industry specific applications. The key features of balanced weight distribution, torsion bar suspension, "live" steel track and a light environmental footprint makes this machine the solution for your off-road equipment needs with the ability to operate in all weather and terrain. We will custom build to your specifications.

REMANUFACTURE KMC

FMC/KMC TRACK VEHICLE REBUILD PROGRAM!        KMC/KOOTRAC has been rebuilding FMC/KMC High Speed Steel Track (HSST) Vehicles for the past 34 years. When we remanufacture/recondition a used FMC or KMC Track Vehicle, we combine many different new, reman or good used parts and components from our very large parts inventory.  We are known worldwide as being the FMC/KMC Track Vehicle "EXPERTS"!  THIS IS OUR ONLY BUSINESS!!! We assemble these machines as per specific customer requirements and price range. All machines will be in excellent operating condition as well as having a very acceptable appearance c/w new paint. You have our guarantee that all machines have been repaired, serviced and a pre-delivery inspection completed prior to shipment. All KMC machines carry a parts and service warranty, some greater than others, depending on customer requests and type of machine assembled (new, remanufactured, reconditioned or used). EACH REMANUFACTURED & RECONDITIONED MACHINE CARRIES A REVISED SERIAL NUMBER DENOTING YEAR  OF REMANUFACTURE OR RECONDITION.. Remanufacture/Recondition Procedure: Machine "core" (original machine) to be visually and mechanically inspected prior to being dismantled. Documented history of recent mechanical reports are available for some "cores" and are reviewed and considered when evaluating repairs. Parts which do not meet our criteria, mechanically or visually, will be repaired or replaced as required. Components which we feel are in good mechanical and visual condition will be cleaned, serviced and reused. If we do not have suitable reman or good used parts or upon customer request, we will install new parts. After machine evaluation, each "core" is stripped to the bare chassis, cleaned, repaired (as per customer order), primed, reassembled and painted. Prior to shipping, each machine is serviced, test driven, re-inspected and final pre-delivery certificate filled out. Upon delivery to customer, a KMC product support person will personally deliver machine and provide training on recommended operating and service procedures (new and reman machines only). A complete specialty tool kit c/w parts, operating and maintenance manuals are sent with each machine. A recommended spare parts kit is also available to be shipped with each machine at a special discounted price. KMC/KOOTRAC's 34 years of FMC/KMC Track Vehicle experience stands behind these rebuilt machines. KMC DESIGNATION/CLASSIFICATION OF NEW, REMANUFACTURED, RECONDITIONED & USED MACHINES 1. NEW:  Machines assembled with new/latest designed components and material. 2. REMANUFACTURED: Machines assembled with all components completely dismantled, evaluated, repaired to as new specifications (using original, remanufactured or, if necessary, new parts).  Re-assembled, tested, painted and pre-delivered.  **- New components, such as tracks & sprockets, torsion bars, roadwheels and idler wheels can be installed at purchasers request Pricing and warranties adjusted as required. 3.  RECONDITIONED: Machines assembled with all components inspected, evaluated, repaired as required (using original, remanufactured or good,  used parts) then re-assembled, tested, painted and pre-delivered. 4. USED: All machines inspected, evaluated, repaired as required, tested, painted and pre-delivered. FMC/KMC TRACK VEHICLE MAJOR COMPONENTS..   1.  Powertrain: engine, transmission, steering differential, planetary final drives, drive lines. 2.  Suspension: roadarm assemblies, idler assemblies, torsion bar system, track adjusters. 3.  Track & Sprocket assemblies 4.  Hydraulic System: control valve, pumps, cylinders, hose assemblies, coolers 5.  Attachments: decking blades, winch, choker arches, grapples, mulchers 6.  Fabrications: ROPS, operator cab, radiator guard, fenders, hood, winch guard, air conditioner cover

Before Remanufacture

After Remanufacture

BUY NEW FROM KOOTRAC

Looking For a New Machine? Choose From One Of Our Kootrac Models
